The glazed architectural envelopes emerge as an aesthetic and insulating solution against environmental conditions, ensuring optimal energy values and natural lighting. The Curtain Wall with cap systems, forms a grid at the junction of glass:

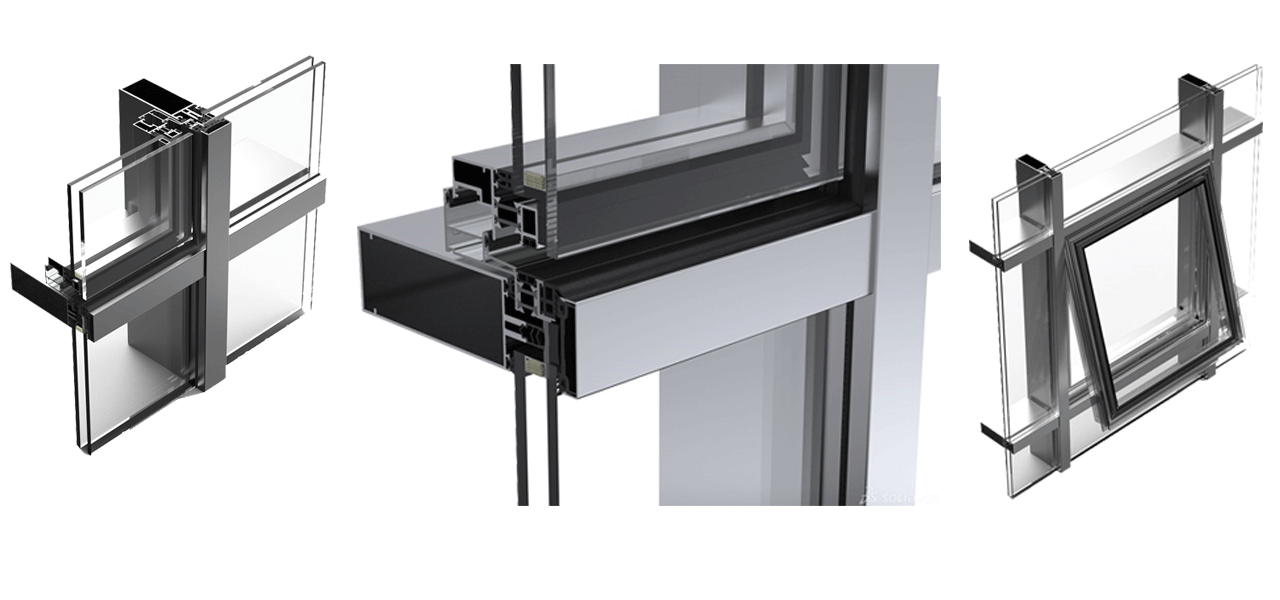

AL 50 TAPETA is a light façade with a system of clamps and caps with the possibility of incorporating projecting openings with hidden leaves. Assembly with anchors and accessories specific to the system, which guarantee its tightness and correct operation.
Wide range of profiles to cover the inertia of the spans between slabs, which allow making coplanar uprights with crossbars and the placement of reinforcing shims for the glass, straight, inclined or airplane wing caps.
Possibility of different finishes:
-
Bicolor
-
Lacquered Color (RAL, mottled and rough)
-
Sublichrome Lacquered Wood
-
EZY® Wood Lacquer
-
Antibacterial Lacquer
-
Anodized
Characteristics
-
Uprights and crossbars of 50 mm visible section
-
Upright depth: from 17 to 290 mm
-
Crossbar depth: from 21.5 to 253.5 mm
-
Glazing from 8 to 43 mm. Possibility of monolithic glass and blind panels
-
Maximum weight per fixed frame: 400 Kg
-
Maximum weight per projecting leaf: 155 Kg
-
Maximum dimension per projecting sheet: 1875 x 2100 mm
-
Exterior opening possibilities:
-
Horizontal projector
-
-
Interior opening possibilities:
-
Practicable
-
Tilt & Turn
-
